The TR1300/1 Vector Network Analyzer delivers lab grade performance in a compact package, with all the features engineers have come to expect included standard in our software.

This portable 1.5 kg/53 oz. vector network analyzer can be battery powered and used in the field, in the laboratory, and in production testing. The VNA can be integrated into a production test system via Manufacturing Test plug-in.

TR1300/1 VNA includes an RF measurement module and TR software application which runs on Windows or Linux operating system on a PC, laptop, tablet, or x86 board computer connecting to the measurement hardware via USB interface. TR software can be installed on multiple computers, making it easy to share the use of the analyzer measurement module.

VNAs and ACMs are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

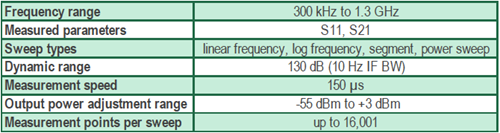

Specifications

 Data Sheet
