The PXIe-S5090 delivers metrology-grade VNA performance and speed to National Instruments’ PXI system. This high-performance vector network analyzer allows testing of two-port devices from the bench to the production floor in a compact, modular form factor. With 138 dB dynamic range and +13 dBm maximum power, this VNA is engineered for short time to first measurement and also for high performance automation with fast test times. Premium features including Time-Domain Measurements and Gating are included in standard software.

VNAs and Automatic Calibration Modules (ACMs) are delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at time of order.

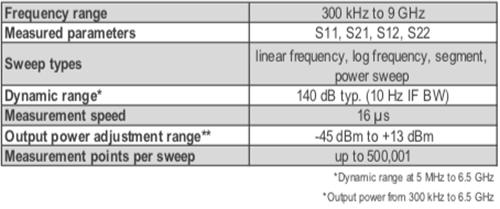

Specifications
