Convenient tap sensor connections to transformer bushings

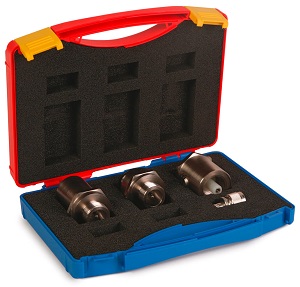

Bushing adapters are combined with OMICRON bushing tap sensors to allow partial discharge measurements to be performed on power transformer bushings. A variety of bushing adapters are available to fit the measurement taps of the most common types of transformer bushings. A gasket ring is included to prevent contamination during measurements.

Applications

• Partial discharge measurements on power transformer bushings

Key features

• Suitable for use with measurement taps on Micafil, ABB, F&G, and HSP bushings as well as IEEE standard measurement taps
• Reliable connections of bushing tap sensors for fast setup
• Integrated surge arrester
