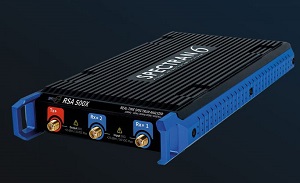

The SPECTRAN V6 X is Aaronia's latest generation of high-performance real-time spectrum analyzers. The RSA 500X comes with a real-time bandwith of 80MHz(opt. 120 MHz), sweep speed of 300GHz/s (440 GHz/s) and includes an I/Q vector signal generator with 120MHz Tx.

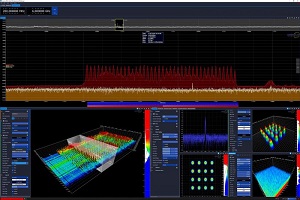

The included software RTSA-Suite PRO is precisely tailored to the powerful and robust hardware and supports the use of multiple SPECTRAN V6 500X. The stackable aluminum housing facilitates the parallel use of several units.

RSA 500X RF connectors:
1xRx, 1xTx 50 Ohm SMA each

Scope of delivery:
SPECTRAN V6-500X, power supply, 774-AC5 (data cable black | 1m | 1 screw), 774-CC11 (power cable red | 2m | 1 screw), USB stick with manual and software, cleaning brush

6 GHz USB Real-Time Spectrum Analyzer with 80MHz (opt. 120 MHz) true I/Q streaming, 300GHz/s (440 GHz/s) sweep speed and included Vector Signal Generator with 120 MHz Tx

• RSA 500X RF connectors: 1xRx, 1xTx 50 Ohm SMA each
• Instantaneous receiver bandwidth of 80 MHz (opt. 120 MHz)
• Sweep speed: 300 GHz/s (440 GHz/s)
• I/Q vector signal generator bandwidth of up to 120 MHz
• FFT-based POI as short as 150ns (100ns)
• I/Q-based POI as short as 50ns (25ns)
• Unlimited continuously I/Q streaming via USB 3.0
• Extraordinary dynamic range from a 16-bit ADC at 2GSPS
• Radio Frequency range of 10 MHz to 6 GHz
• Sample rate: 500 MSPS (16 Bit Dual 256 MSPS I/Q-Data)
• FPGA: 930GMAC/s
• FFT rate: 960 Million FFT-points/s (120 Million FFTs/s)
• Stackable accessories
• Extremely compact and lightweight
• Full MATLAB support
• Including worlds leading “RTSA-Suite PRO” spectrum analysis software
• Made in Germany
