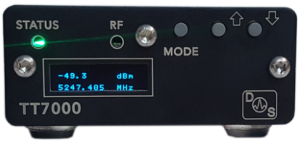

The DS Instruments TT7000 (REV 4) combines a calibrated RF Power Meter, a wide-band RF frequency counter, and a RF Signal Generator into one ultra-miniature USB device. Fractional-N synthesis signal generation covers 300MHz to 9600MHz with low phase noise and adjustable output power. RF Power Meter functionality covers from -45 to +5 dBm for frequencies between 100MHz to 7GHz. Not only is the TT7000 powered from USB and controlled with standard SCPI commands, but it also provides also a stand-alone user interface and display. For only $900 no modern microwave laboratory can be without an instrument of this utility and portability. No host computer required. Designed and built in USA with only genuine cutting-edge semiconductors.
Now Shipping Rev 4 with new 0.25dB output attenuator, and simultaneous generator-meter mode.

System Operation Modes

• RF Power Meter and Frequency Counter (simultaneous)
• Signal Generator & Power Meter (simultaneous)
• Power Meter (manual frequency calibration)
• Frequency Counter
• RF Signal Generator
• High-power RF Divider (1X, 2X, 4X, 8X)

Features

• Crisp OLED Front Display
• Front control buttons & status LEDs
• USB powered and virtual COM port SCPI control
• All-Aluminum black compact enclosure
• Internal precision reference frequency
• Automatic power meter calibration using internal RF frequency counter
• Adjustable power output (Band 1 < 4.8GHz)
• Premium 18GHz microwave SMA jacks
• Low signal generator phase noise
• USB voltage monitor

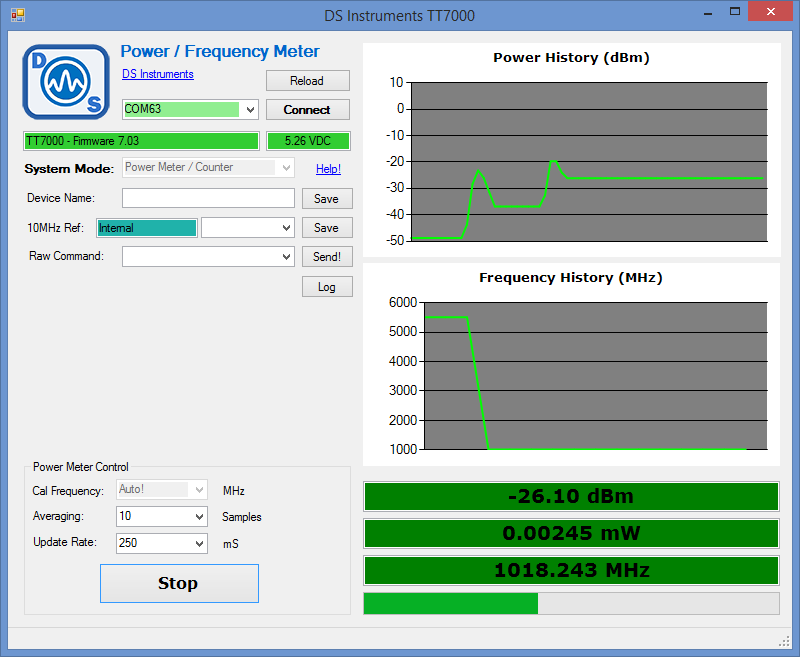

GUI Control Software

 TT7000_R4_Datasheet_V1
