The NEW DS Instruments SG6000L RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000L enables users to generate a high quality RF signal easily and at extremely low cost without need for a host PC. This fully synthesized, modern fractional N synthesis device covers 7 octaves from 25 to 6000 MHz. Max output power is typically above +10 dBm and can be adjusted downward in 0.5dB steps, or continuously via the internal variable attenuator. The RF output step size varies from a maximum of ~3 KHz to less than 40 Hz, depending on band of operation. The crisp OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. Like most of our products, the SG6000L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.

Features

• Stand-alone and USB remote operation
• Up to 6GHz output frequency
• Adjustable output power (Step & Variable)
• Industry-standard SCPI command support
• Internal ±2.5PPM TCXO 10MHz reference
• Front user frequency step buttons
• Frequency-sweeping support
• Front-mounted bright OLED display
• Sturdy black all-aluminum enclosure
• Simple Windows control GUI
• Low voltage monitor
• Powered from standard micro-USB like a smartphone
• Easy to interface with all software packages (Matlab, python, android, linux, ios…)

Common Applications

• Automated testing environments
• General RF Lab use
• Flexible LO sourcing
• Antenna design
• EMC Testing
• Production verification and testing
• Educational / university lab use
• Aerospace / Defense Research
• 802.11n Development / Testing
• LTE Engineering

SG6000L - Rear

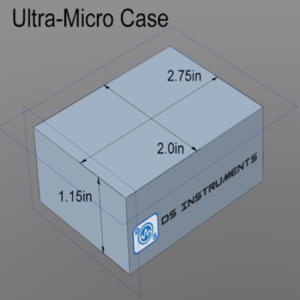

Ultra-Micro Case

Windows Control Software

RF Performance (see datasheet)

 User Manual & Quick Setup        SG6000 Family Datasheet V2.6 (June 2018)
