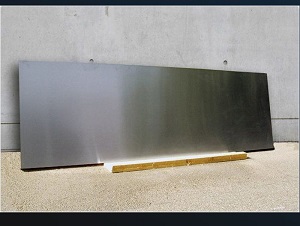

Aaronia's high performance EMC panels Aaronia MagnoShield® magnetic field-shielding & screening. Aaronia's industry-grade EMC magnetic panel-shielding are made from special MuMetal composite panels and allow efficient shielding against virtually ALL radiation: LOW FREQUENCY MAGNETIC FIELDS as well as high frequency RF fields, electric fields and electrostatic fields.

Aaronia MagnoShield® magnetic-shielding is particularly suited for screening against low-frequency magnetic fields emitted from transformers, traction power lines, power cables etc.

Also ideally suited for building bug-proof environments, precision EMC measurement chambers or for protecting highly sensible areas in aerospace.

• NEALED for MAXIMUM shielding efficiency
• Screening factor: 10-13
• Saturation flux density: approx. 0,8 Tesla
• Packaging unit: 1,32m²
• Width: approx. 660mm (0,66m)
• Height: approx. 2000mm (2m)
• Thickness: 0,5mm (1mm with screening factor >15 on request)
• Magnetically conductive Material: Nickel/iron alloy, so-called. Mu-Metal, isotrope
• Noncorrosive
• Frost proof
• Paintable
• Installable in plaster or concrete
• Very easy handling even for the novice
• Easy handling due to practical packaging unit
• Colour: Dark silver
• Weight: approx. 4kg/m²
• Quality assurance standard: ISO 9001
• Material verification certificate: B according to EN 10204
