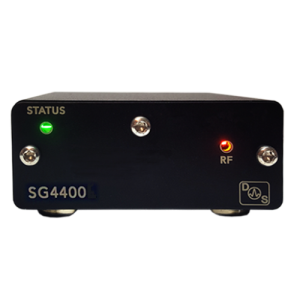

The DS Instruments SG4400 compact RF Signal Generator enables users to generate a high quality RF signal easily and at low cost. The output covers 35 to 4400 MHz. The produced wave is fully synthesized using modern fractional N synthesis. The step size of the RF output varies from a maximum of ~1.5KHz to less than 25Hz , depending on band of operation. The synthesized source uses its own internal 10 MHz. Maximum output power is typically above 8 dBm and can be adjusted in 0.5dB steps down by 31.5dB. Like most of our products, the SG4400 easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.
Features
- Adjustable RF signal output power
- Flexible frequency-sweeping support
- Low phase-noise
- Internal ±2.5PPM 10MHz TCXO auto-reference
- Professional industry-standard SCPI command support
- Sturdy aluminum powder-coated black enclosure
- Friendly Windows control GUI
Common Applications
- Automated testing environments
- General RF Lab use
- Flexible LO sourcing
- Antenna design
- EMC Testing
- Production verification and testing
- Educational / university lab use
- Aerospace / Defense Research
