Specification:

• Frequency Range: 1MHz to 6.1GHz (RF band) 100Hz to 1MHz (Low band), 1Hz resolution, 0.5PPM clock accuracy.
• Output level range: -100dBm~+10dBm (1MHz ~4GHz), -100dBm~+0dBm (4GHz ~6.1GHz), -50dBm~0dBm (Low band), 0.25dB resolution.
• Working mode: CW mode, frequency sweeping, frequency hopping, pulse modulation and simultaneous I&Q modulation(100KB data buffer).
• Analog modulation: AM, FM, PM.
• Digital modulation: ASK, FSK, 4FSK, GFSK, MSK, GMSK, SFSK, and more modulation signal based on the I&Q engine.
• Phase modulation: BPSK, 4PSK, 8PSK, 16QAM, 32QAM, 64QAM and more modulation signal based on the I&Q engine.
• Low band function: Sin wave, I&Q modulation,arbitrary signal waveform (raw data file) and modulated any low band signal into RF signal with AM, FM and PM.
• Pulse signal modulation:pulse width 0.25us~5s, repeat time: 40us~20S(single frequency), 400us~20s (Sweeping and hopping)
• Dimensions: 100mm x 25mm x 25mm (L x W x H)

Features

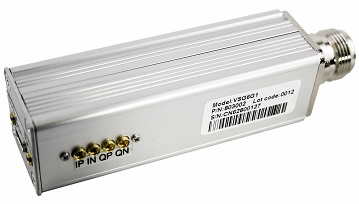

• Probe size USB device, with N connector and solid metal case
• I&Q connector provides I&Q input and output

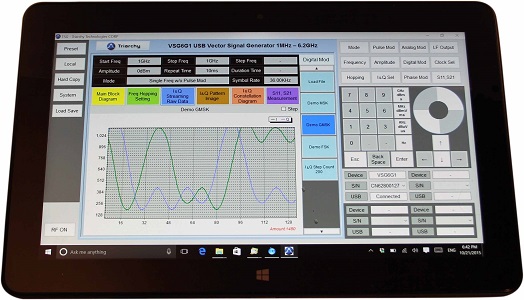

• Intuitive PC program GUI inspired by desktop instrument front panel
• Provides I&Q engine for easy generation of many useful modulations
• Multi-modulation solutions achieving simulation of: TDMA, CDMA , hopping system, and most of the useful systems
• Built-in arbitrary function generator to Low band signal output
• Pulse output at rear panel for Synchronization or work as Pulse generator
• Extra Low cost, extra low weight, best performance for price
• Reference clock input and output
• USB type C port without extra battery pack Standalone working with only 5V power.
• Offline work only with 5V source power.
