USB BroadR Converter
Price:

Highlights:
  • Broadcom BroadR-Reach Technology
  • Master/slave configuration through a windows tool
  • Power requirement: 5V DC provided from USB 2.0

Description

USB BroadR Converter

Product Details

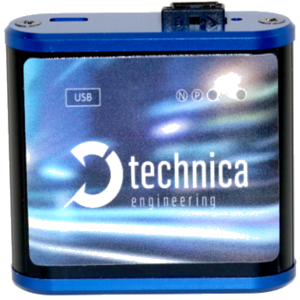

The USB-100Base-T1 Converter from Technica Engineering is a smart tool used in automotive product development to test electronic control units (ECUs). It creates the link between an on-board vehicle network based on BroadR-Reach (100Base-T1) and the USB computer belonging to the testing and development set-up via USB-LAN.

The USB interface directly feeds the device to provide power avoiding additional cables and connectors. Thanks to the provided Windows driver the device allows a simple configuration.

Note: Windows driver available, Linux driver beta-version available

Thus the USB-100Base-T1 Converter is the ideal solution for working quickly and efficiently with the new BroadR-Reach (100Base-T1) technology.

Features

  • Converts Broadcom BroadR-Reach (IEEE 100Base-T1) 100 MBit/s full duplex 1x unshielded twisted pair (UTP) to USB
  • Broadcom BroadR-Reach Technology
  • Master/slave configuration through a windows tool
  • Power requirement: 5V DC provided from USB 2.0
  • Small size device as portable solution
  • Status LEDs
  • Automotive MQS connector included (BroadR-Reach)
  • Standard USB Connector
  • Size: 60 x 42 x 19mm
